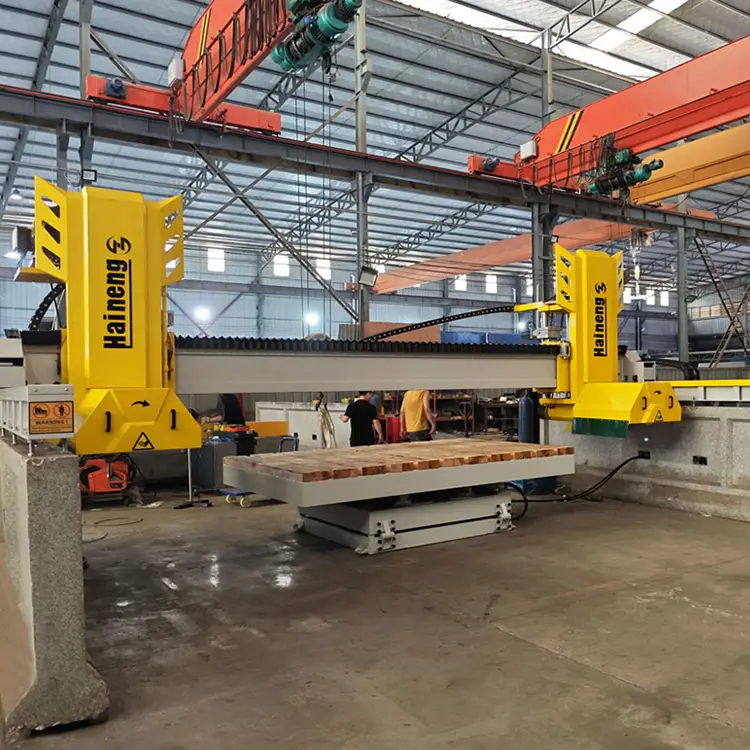

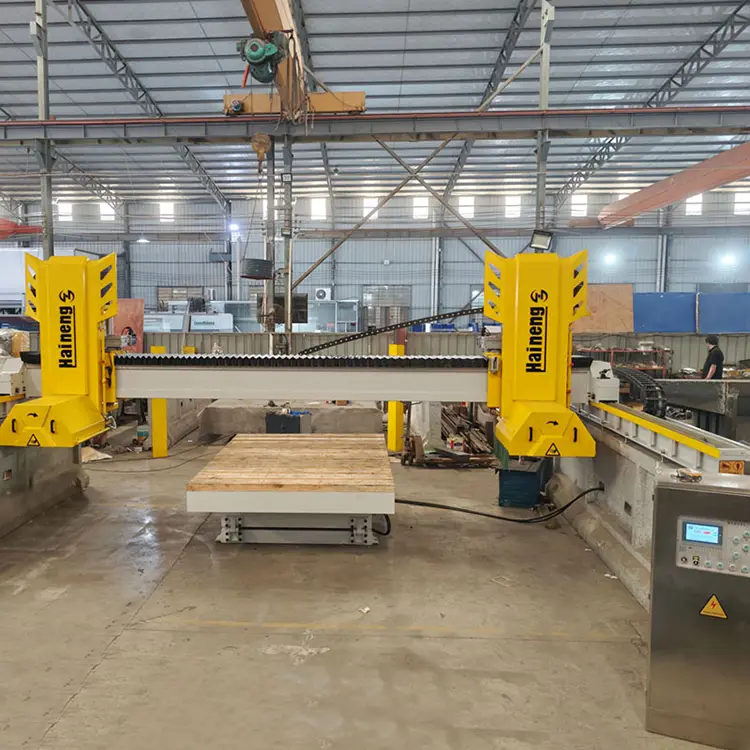

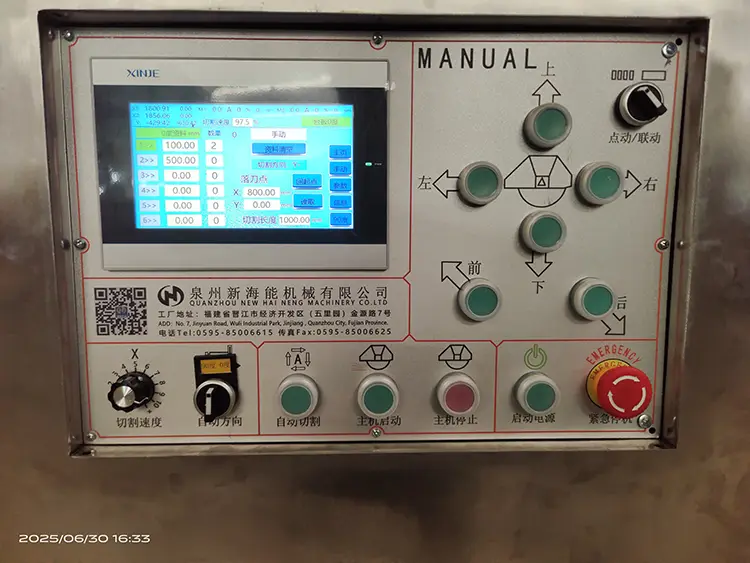

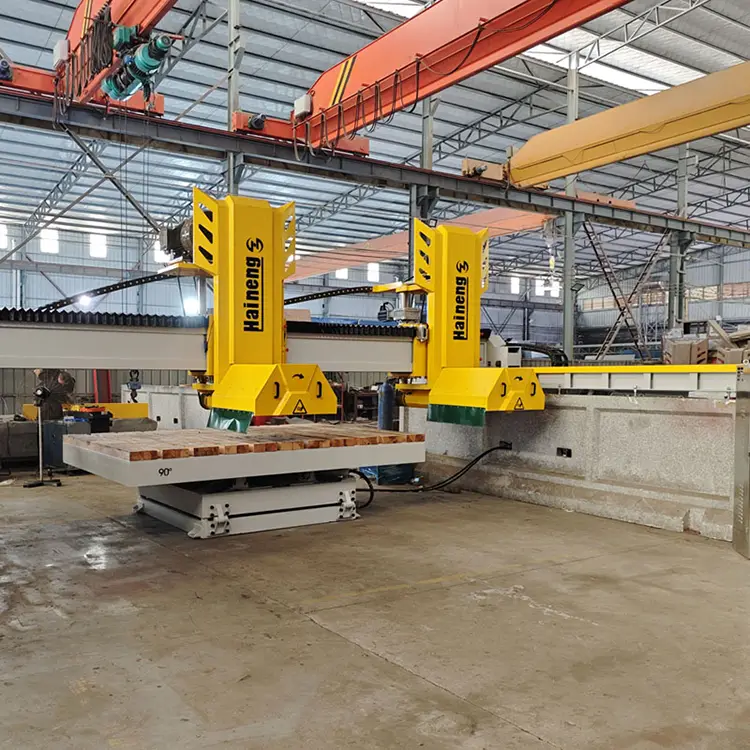

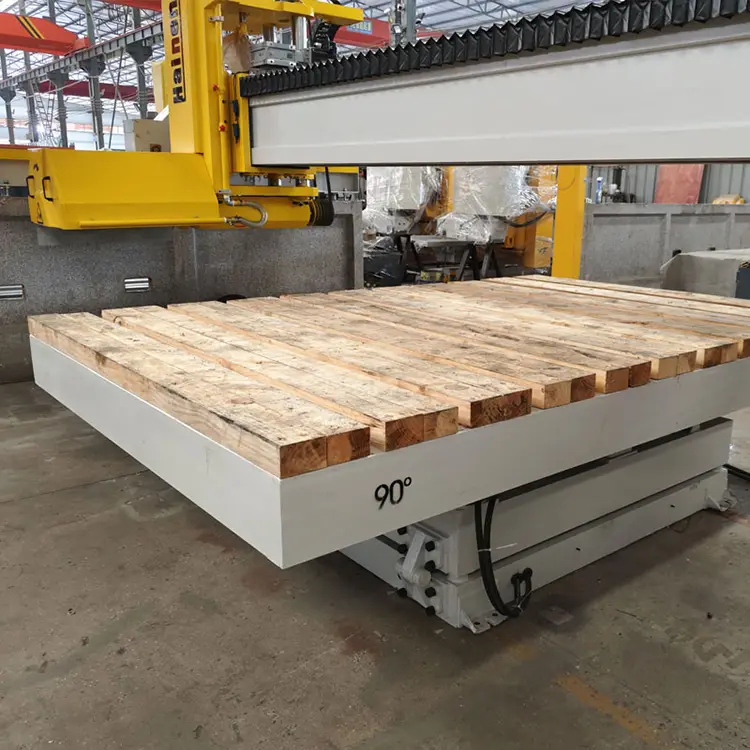

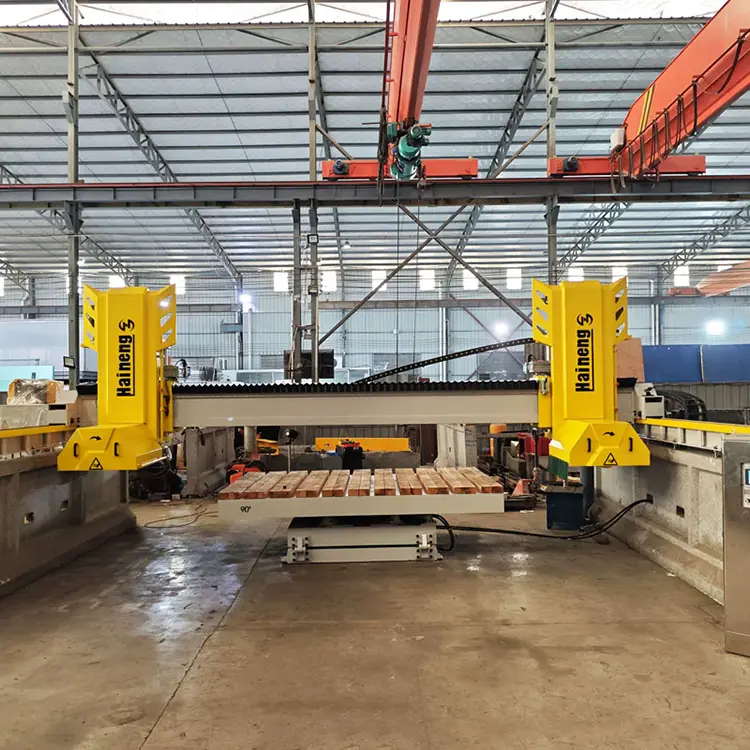

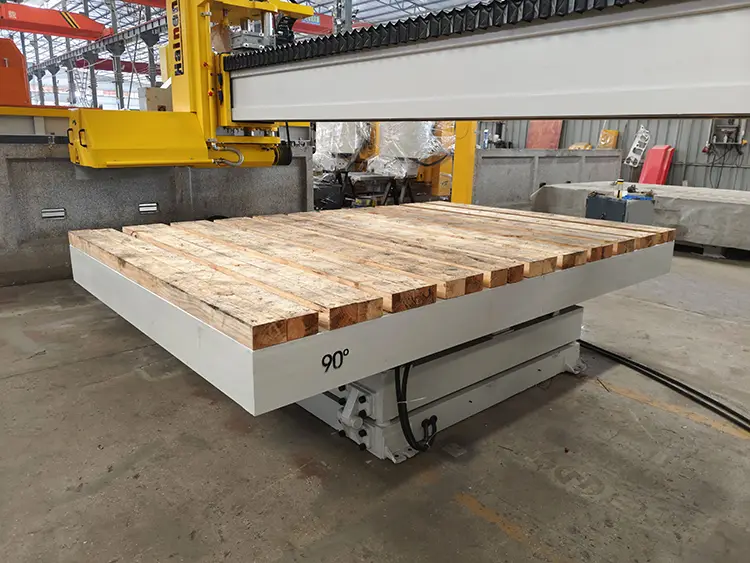

This product adopts PLC microcomputer control, equipped with touch operation screen and manual operation panel and wireless remote control, you can choose to manually or automatically manipulate the machine according to the needs of man-machine dialogue flexible and comfortable. The machine body adopts bridge structure, equipped with double machine heads, each head hangs several saw blades of the same specification. The working table can be rotated from 0 to 90 degrees, and the working order of the machine heads can be flexibly selected according to the needs, so as to achieve the purpose of efficient production of specification boards.
|
Name |
Unit |
HSQ600-8 |
HSQ800-8 |
|
Maximum saw blade diameter |
mm |
600 |
800 |
|
Quantity of saw blades |
pcs |
1-8 |
1-8 |
|
Saw blade shaft diameter |
mm |
80 |
100 |
|
Maximum working size |
mm |
3000X2000X150 |
3000X2000X250 |
|
Number of aircraft heads |
pcs |
2 |
2 |
|
Workbench size |
mm |
3000X2000 |
3000X2000 |
|
Rotation Angle of the workbench |
° |
0-90° |
0-90° |
|
Main motor power |
kw |
37*2=74KW |
37*2=74KW |
|
Total power |
kw |
84.4KW |
85.2KW |
|
Water consumption |
m³/h |
6 |
7 |
|
Overall dimensions |
mm |
7300X5500X3600 |
7300X5500X3600 |
|
Total weight |
kg |
11000 |
12000 |
